VOL-1000/2 TRANSFORMER FOIL WINDING MACHINE

Short Description:

VOL -1000/2 Foil Winding Machine is the latest designed motor driven foil winding machine for winding the low voltage foil coil for transformer. It can wind cylindrical coils and rectangular coils.

Inquiry

Contact Us

    Category:

    Video

    1. GENERAL DESCRIPTION

    VOL -1000/2 Foil Winding Machine is the latest designed motor driven foil winding machine for winding the low voltage foil coil for transformer. It can wind cylindrical coils and rectangular coils.

    xdrfh (6)
    xdrfh (5)
    xdrfh (2)
    xdrfh (4)

    2. THE FOIL WINDING MACHINE CONSISTS OF:

    Uncoiling device 2 sets
    Scissors device 2 sets
    Layer insulation uncoiling device 2 sets
    Welding unit (Including a TIG welder) 1 set
    Foil winding system 1 set
    End insulation device 2 sets
    Electrical control system 1 set
    Rectification device 2 sets
    Layer insulating cutting device 1 set
    Foil edge burr remover device 2 sets
    Foil edge clean device 2 sets

    3.MAIN TECHNICAL PARAMETERS

    3.1 Coil processing specifications

    Axial length (mm) 350~1000
    Axial effective length（with terminal）mm 1400
    Outer diameter of coil（with terminal）mm Ø1100
    Outer diameter of coil (without terminal )mm Ø900
    Min. Inner diameter of coil (mm) Ø100
    Form of coil Round, Rectangular
    Material Copper foil、Aluminum foil
    Width range of coil (mm) 350-1000
    Thickness of foil (mm) Copper foil :0.3-2; Aluminum foil 0.5-3
    Coil inner diameter mm ≤Ø500
    Coil outer diameter(Max)mm Ø900



    3.2 De-coiler specifications

    Effective length of roller mm 1010
    Roller shrinkage range Ø 460~ Ø 520
    Roller load(Max)kg 2000
    Tension 12000 N
    Pressure 0~0.6 Mpa
    Rectify mode Automatic, sensor system
    Rectification precision (mm) ±0.5
    Electronic control counting digits Five（0-9999.9）



    3.3 Winding specifications

    Winding speed（speed stepless） 0~30r/min
    Working torque(Max) ≥2000 N.M
    Winding power (KW) 15
    Speed adjusting mode Frequency Stepless Speed Adjustment
    Winding shaft length (mm) 60*60*1550



    3.4 Welding specifications

    Welding method TIG Argon tungsten-arc welding (500A)
    Welding corner 0-60°
    Welding speed (m/min) Frequency Stepless Speed Adjustment 0-1



    3.5 Scissors device

    Shear form Screw rod cutting disc
    Shearing speed 1.5m/min
    Sheared length (mm) 1000
    xdrfh (8)

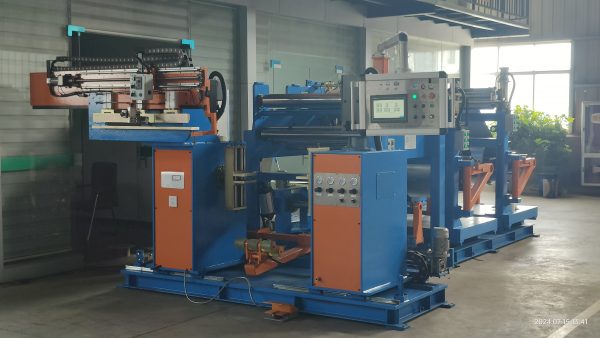

    {Picture of layer insulation device}

    xdrfh (7)

    {Picture of end insulation device}

    3.6 Layer insulation

    Layer insulation installed shaft 2 sets
    Outer diameter of insulating paper (mm) ≤Ø400
    Inner diameter of insulating paper (mm) Ø76
    Width of insulating paper (mm) 1050
    Installed axle Pneumatic style



    3.7 End insulation

    Quantity 2 sets
    Outer diameter of end insulation (mm) ≤ Ø350
    Inner diameter of end insulation (mm) Ø56
    Width of end insulation (mm) ≤50



    3.8 Others

    Layer insulating cutting device 1 set
    Foil edge burr remover device 2 sets
    Foil edge clean device 2 sets
    70*70  60*60 square shaft Configure one piece (customize)
    Transmission mode Linkage、Manual
    Operation mode PLC control, touch screen operation;the man-machine interface

    4. TECHNICAL DESCRIPTION OF MAIN PART

    4.1 Uncoiling device

    Including the uncoiling transmission case、pedestal、bracing plate、motor、rectification、 roller feed etc structure, as foil uncoiling device,have support material、uncoiling feeding、adjusting servo function etc.

    Uncoiling device main shaft has square section,through three groups link rod support,coil can be hold tight on the roller. Main shaft can uncoil to feed and wind ,easy to adjust working condition.When linkage,through the clutch make shaft and actuating device to separate.Main shaft has press roller device,can independently or parallel use. Press roller adopt E-pneumatic, easy to control, clean safely.

    Rectification adopt roller clutch,with the power system,According to the instructions of the PLC control system,uncoiling device will follow gib block move around quickly and accurately.In order to ensure the foil testing signal feedback of selvedge detector in the accurate position all the time,achieve the rectification function of foil.

    xdrfh (9)

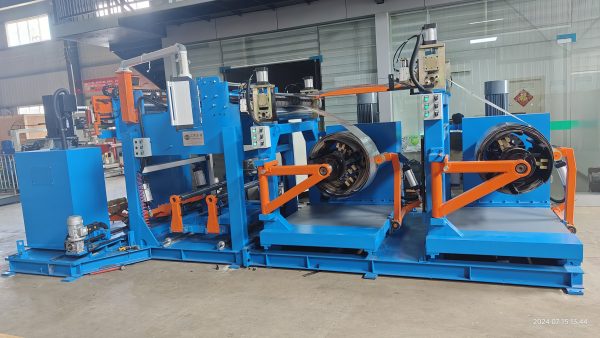

    {Picture of de-coiler device}

    4.2 Layer insulation device:

    Layer insulation device is to support the insulation material and make insulation generate tension during winding;

    The device is consist of scroll, clutch, motor and controller.Convenience for feeding ,stent can be pulled out ;take down air swelling shaft,put on coil stock and push in ,make shaft end gear enter into damping device and then meshing,this moment, drive and damping function will act on insulation materials fixed on air swelling shaft. make layer insulation keep tension state in the process.the device have EPC control system,adopt hook ,through screw, using the hand wheel to conduct manual type rectification,simple structure, easy to operate.

    4.3 Welding device:

    This welding device meet the foil tape and leading wire welding;Welding device installed on the winding transmission box, the welding arm can run around on the bedplate, after finishing the welding process, welding arm move back to the right, empty out the winding position, easy for winding operation;In order to adapt to lap welding, stud welding, butt welding, welding torch arm can make a large angle oscillation and the adjustment of the length, the welding torch clamp can customize according to the actual or be designed for replacement, welding torch device design several regulating function, can according to operating habits adjust at will.

    Welding torch device installed on the straight line guide rail, through the motor (reducer), lead screw drive, can be adjusted to various position to adapt to the different forms of welding, using inverter infinitely adjustable-speed, can be very convenient to adjust welding speed.

    xdrfh (11)

    {Picture of welding device}

    4.4 Feeding device and deburring device:

    This system consists of  smooth roll shaft, feed roller, slide block device, driving system, foil via light roller, roller  clamp foil tape by the cylinder ,remove burrs on the edge of the foil tape at the same time, the motor drive to achieve the purpose of feeding, cylinder lift stop feeding.

    xdrfh (10)

    4.5 Detection edge device:

    Adopt photoelectric selvage detector, responsive, high accuracy, can adjust with different width of the foil belt.

    4.6 Dust removal device:

    Fixed wool felt on square tube, pinned foil by air cylinder go upward and downward to remove dust, special governor valve to adjust air pressure based on actual needed.

    4.7 Paper cutting axle:

    This machine have paper cutting axle design., no dead angle.

    4.8 Electric control system:

    Adopts Japan Mitsubishi PLC system control, touch screen with button design, all programs (such as winding, correcting, turns controlling)will be counted by PLC control system, and send different instructions, then carry out the instructions by programs. The operator only need enter related parameters to finish mass production with same coil diameter. This machine can also operate manually by push buttons, such as jog and linkage, it also setting several emergency buttons on the main console and important console to stop machine on time when appear. emergency affairs. All operations of this system can be operated by main console.

     xdrfh (3)

    {Picture of distribution cabinet}

    5. MAIN ELECTRICAL COMPONENTS

    PLC Japan Mitsubishi
