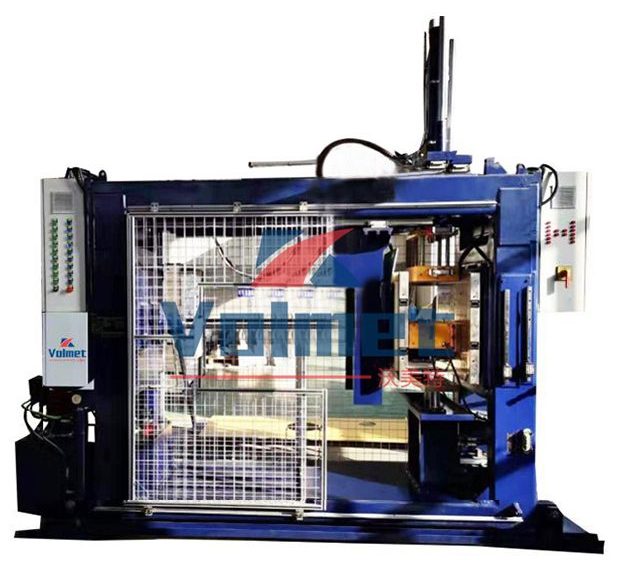

VOL-8060-25 Standard type APG press machine

Short Description:

Features:
Double clamping plate,high efficiency,used for casting insulators,wall bushing and simple products

DVOL-8060-25 series APG epoxy machine is made up with:
-1.APG clamping machine frame (Q235# 10mm steel,machine more stably;release welding internal stress by heat treatment)
-2.Power cabinet (Adopt realiable and general electrical elements)
-3.Hydraulic power pack (independent production,offer customzied service)

Inquiry

Contact Us

    Category:

    VOL-8060-25 Standard Type APG Clamping Machine

    APG Machine Video

    Application:

    Used for producing epoxy resin components from 11-36KV, such as CT, PT, insulators, bushings, spout,SF6 cover, GIS, LBS etc.

    Application4

    Advantages:

    -Machine double station→high efficiency
    -Integrated on machine→ Easy installation,the user does not need to do hard work of connecting oil pipes and wires, just plug in the power supply directly.
    →save shipping costs, and save factory space.
    Machine frame: Tempering and finishing machinery →Improve strength, avoid deformation, ensure high precision, avoid mold leakage
    Safe fences→ Avoid work injure
    Supply technical training→Ensure clients make qualified products
    Supply complete production line→From machine, mold to raw material, assist client build a production line in the shortest time and reasonable cost.

    Technical Parameters:

    Model No. VOL-8060-25 VOL-8080-25 VOL-1010-40 VOL-1210-40
    Heating plate size (mm) 800X600 800X800 1000X1000 1000X1200
    Clamping force (KN) 250 250 400 400
    Speed of clamping close (m/min) 3.1 3.1 2.7 2.7
    Speed of clamping open (m/min) 4.8 4.8 3.1 3.1
    Distance between heating plates (mm) 150-1200 200-1500 200-1600 200-1600
    Heating power (KW) 12 20 24 24
    Hydraulic unit power (KW) 5.5 5.5 5.5 5.5
    Tilting degree (°) 7° X axis,Y axis tilting optional
    Machine dimension (mm) 3750X970X2570 4500X1020X3730 4805X1220X4260 4805X1220X4260
    Machine weight (KG) 4300 5350 7700 7700

    Standard Type APG Machine At Client Site&Onsite Technical Training:

    We not only produce APG machines and molds but also offer technical training at the site, ensuring clients produce qualified products.

    Cast 36Kv epoxy resin bushing by Volmet APG clamping machine

    Cast 11Kv epoxy resin insulator by Volmet APG cating machine
    Standard type APG machine at client site&onsite technical training (1)

    Onsite Technical Training In Client Company:

    After X-ray, tensile test, partial discharge test, leakage test, the product meets customer requirements, and the customer is very satisfied.



    Apg Injection Machine Casting Production Process:

    cast two cavities current transformer

    singlieng

    Epoxy Resin Voltage Transformer APG Technique Training:

    cast two cavities epoxy resin voltage transformer

     epoxy-resin-voltage-transformer-APG-technique-training

    APG Press Machine Production Process:

    1. Milling machine frame: each side of the frame will milled by a vertical lathe machine, to ensure installation precison, and avoid mold leakage.

     2. Heating treatment for machine frame: Do 3 times of heat treatment for machine frame after welding. release inter stress, and reduce machine get deformation.

    sing1gs
    Shipping-mold

    APG Press Machine Delivery Process:

    After the qualified samples of the equipment and molds are prepared, we will carry out strict packaging to avoid damage to the equipment during transportation and smoothly deliver to the customer.
